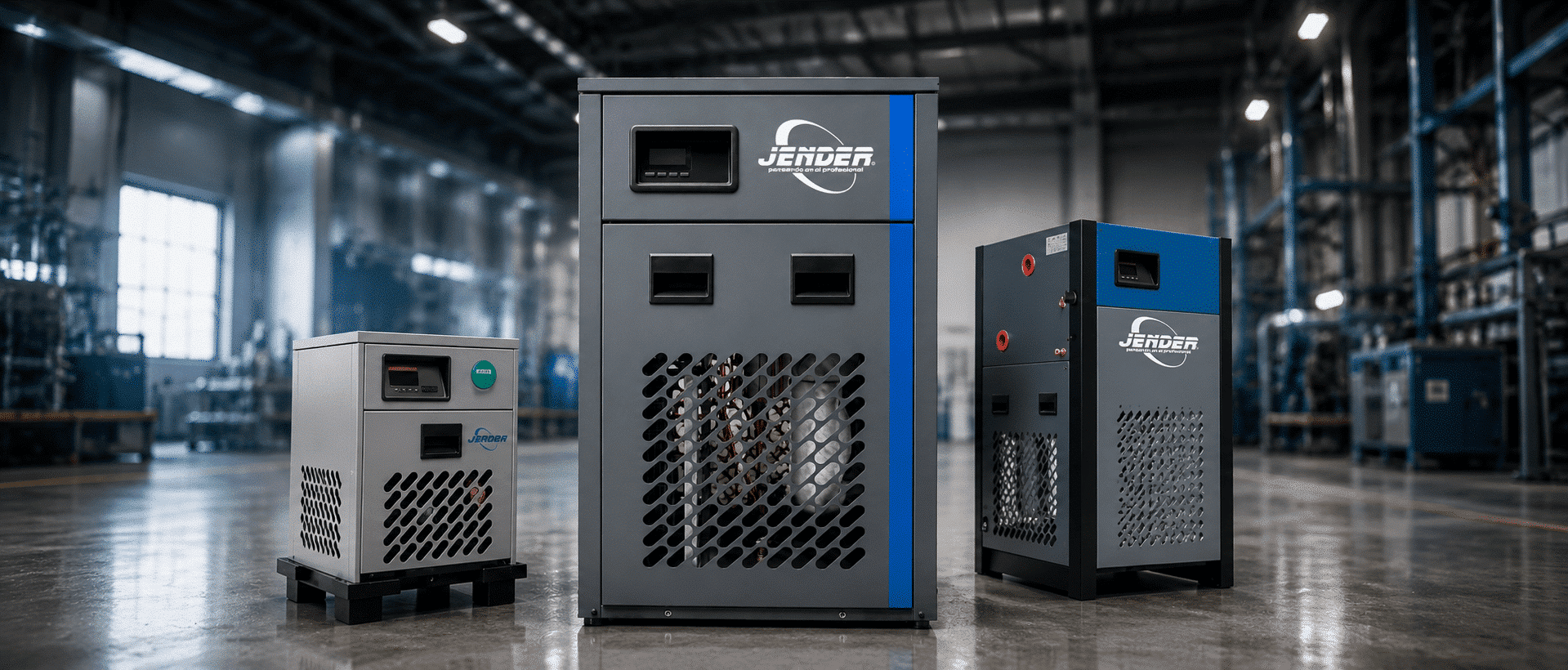

Refrigerated air dryers for compressed air
JKE series refrigerated air dryers remove moisture from compressed air by cooling it to a +3°C pressure dew point. At that temperature, the water vapour contained in the air condenses into liquid form, is automatically drained, and the air leaves dry into the distribution network. Without a dryer, moisture condenses inside the pipes, oxidises fittings, damages pneumatic tools, and causes defects in paint finishes.
Available in 18 models with flow rates from 380 l/min to 46,250 l/min, covering everything from 3 HP compressors to industrial installations of over 200 HP. Connections from 1/2″ to 2″.
Technical features of JKE dryers
Low energy consumption
Designed to minimise pressure drop in the air circuit and reduce the electrical consumption of the refrigeration system. Each model is sized for its specific flow rate, avoiding oversizing that drives up consumption.
Fast start-up
They reach operating temperature quickly, reducing the waiting time after start-up.
R134a refrigerant gas
Standard refrigerant with high energy efficiency.
Smart pressure switches
They regulate the condenser fan motor according to ambient conditions, optimising consumption based on outdoor temperature.
Integrated condensate drain
The separated water is discharged automatically without operator intervention.
How to choose the dryer for your compressor
The main criterion is flow rate: the dryer must have a capacity equal to or greater than the compressor’s maximum flow rate. The table filters allow you to search by flow rate (in m³/h or m³/min) or directly by the HP of the associated compressor.
For workshops and small installations with 3 to 10 HP compressors, JKE 123 to JKE 170 models (380 to 1,170 l/min) cover the demand. For industrial installations with 25 to 75 HP compressors, JKE 1155 to JKE 1375 models (2,580 to 6,250 l/min) are the most common. For large plants with compressors over 100 HP or multiple units in parallel, JKE 1930 models and above (15,500+ l/min) provide the required capacity.
